Globus Connect Personal enables you to share and transfer files to and from your Linux laptop or desktop computer — even if it’s behind a firewall. Follow the steps below to turn your personal computer into a Globus Endpoint.
If you want to use the graphical interface, you must have Tcl/Tk installed. Without Tcl/Tk, you can still use Globus Connect Personal, but you will only be able to use it in command-line mode.
Globus Connect Personal’s graphical setup tool does not require Tcl/Tk. Only the interface for configuring and managing an installation once it is setup has this limitation.
You can install Tcl/Tk using these instructions:
$ sudo apt-get install tk tcllib
$ sudo zypper install tk tcllib
You can also download Globus Connect Personal directly using wget or curl:
$ wget https://downloads.globus.org/globus-connect-personal/linux/stable/globusconnectpersonal-latest.tgz
Extract the files from the downloaded tarball.
$ tar xzf globusconnectpersonal-latest.tgz # this will produce a versioned globusconnectpersonal directory # replace `x.y.z` in the line below with the version number you see $ cd globusconnectpersonal-x.y.z
Start Globus Connect Personal. Since this is the first time you are running it, you must complete setup before you can run the full application.
This will interactively guide you through the setup process.

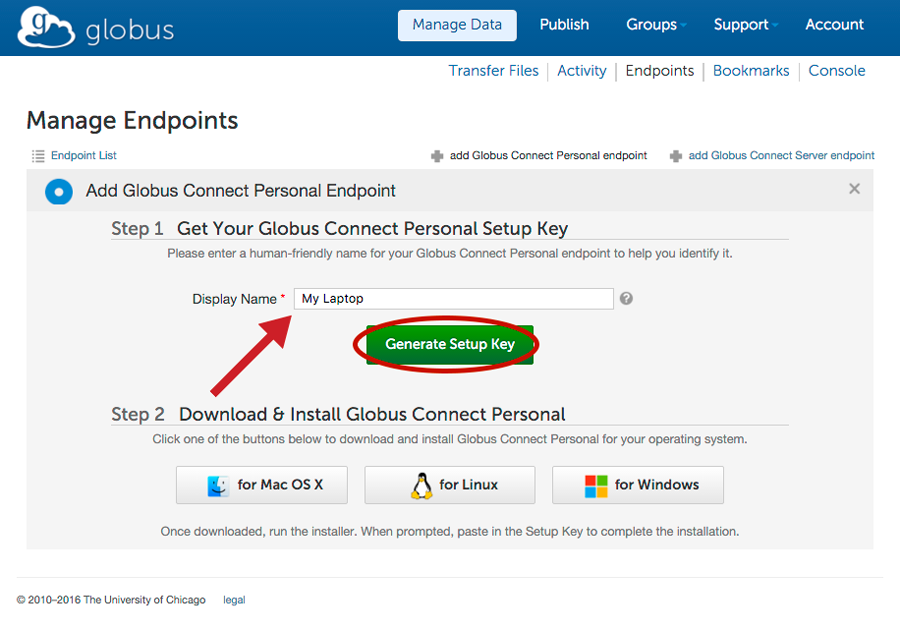

Follow the on-screen install instructions. If a graphical environment is detected, a window will appear, like the one shown below
Otherwise, you will be given text prompts for the relevant information.Tip
You can control
globusconnectpersonalwith command-line options. Use
./globusconnectpersonal -hto show detailed help text.
There are additional options for performing setup, specifically, which can be viewed by running
./globusconnectpersonal -setup --helpfor more details.
At the end of the installation, the setup will exit with a message stating it was successfully set up and the main Globus Connect Personal application will launchNote
The configuration for Globus Connect Personal is stored in
~/.globusonline. A unique host certificate is stored here and must be kept private. By default, it is not readable by any other user.
Once the installation is complete, you may prefer to start the application in the background:
# you can also run with 'nohup' to make it easier to detach Globus Connect # Personal from your shell $ ./globusconnectpersonal &
click the 'Connect' button to establish connection to Globus. You should see the status reflected below.
The green light indicates that Globus Connect Personal is running properly and is connected to Globus. You may minimize or hide this status window once Globus Connect Personal has connected successfully.
If you want to start Globus Connect Personal, but avoid use of the Tcl/Tk GUI,
you can explicitly start up in command-line mode with the
-start flag, as in:
$ ./globusconnectpersonal -start &
If you have any problems connecting, you may start the application using the
-debug option, as in
./globusconnectpersonal -start -debug, to get more information.
The status of Globus Connect Personal running in the background can be seen using the
-trace option provides more detailed information:
$ ./globusconnectpersonal -status Globus Online: connected Transfer Status: idle $ ./globusconnectpersonal -trace gridftp 1 #gsissh connected #gridftp 1 #gsissh connected #gridftp 1 [...]
You can see more detailed options for running Globus Connect Personal with
$ ./globusconnectpersonal -h
This will display help-text including options for relocating the configuration directory, pausing and un-pausing Globus Connect Personal, and stopping (shutting down) any running Globus Connect Personal process.
Shut down Globus Connect Personal using the stop command:
$ ./globusconnectpersonal -stop
Delete the old Globus Connect Personal install directory.
Delete the old Globus Connect Personal config with this command:
$ rm -r ~/.globusonline/
Globus Connect Personal is now removed from your system.
Globus Connect Personal should not be confused with the Globus CLI.
They are separate applications — while they may both be useful to you,
globus commands are distinct.
There is one command in the Globus CLI which interfaces directly with Globus
globus endpoint local-id.
By default, this command shows the ID of a Globus Connect Personal endpoint
whose configuration is located in the default directory.
The result is that
globus endpoint local-id is useful for substitution in
subshells. For example, here’s an
ls command run against the current Globus
# this will only work if Globus Connect Personal is connected $ globus ls "$(globus endpoint local-id)"
Many Linux distributions have moved to systemd as their preferred init system. One of the benefits this offers is the ability to run services which belong to particular users under per-user systemd instances.
A great deal of excellent documentation on this subject can be found in The Arch Linux Wiki entry about Systemd User Units.
These are instructions for using this configuration to configure Globus Connect Personal to run automatically in the background.
Download and unpack Globus Connect Personal following the instructions above
Complete the setup but do not launch Globus Connect Personal, as in
$ ./globusconnectpersonal -setup
Move the install to a canonical directory from which you would like to run it. For example:
$ mv globusconnectpersonal-*.*.*/ ~/.globusconnectpersonal
Create a new user unit file in your home directory
mkdir -p ~/.config/systemd/user/
And write the following content in
[Unit] Description=Globus Connect Personal [Service] ExecStart=%h/.globusconnectpersonal/globusconnectpersonal -start -debug [Install] WantedBy=default.targetNote
The names and exact commands used here are recommendations. You may want to make adjustments to suit your usage.
Start and enable the new service, and check its status
$ systemctl --user start globusconnectpersonal $ systemctl --user enable globusconnectpersonal $ systemctl --user status globusconnectpersonal
If you want your user units to start on boot and persist after you logout, enable "lingering" for your user:
$ sudo loginctl enable-linger $USER
